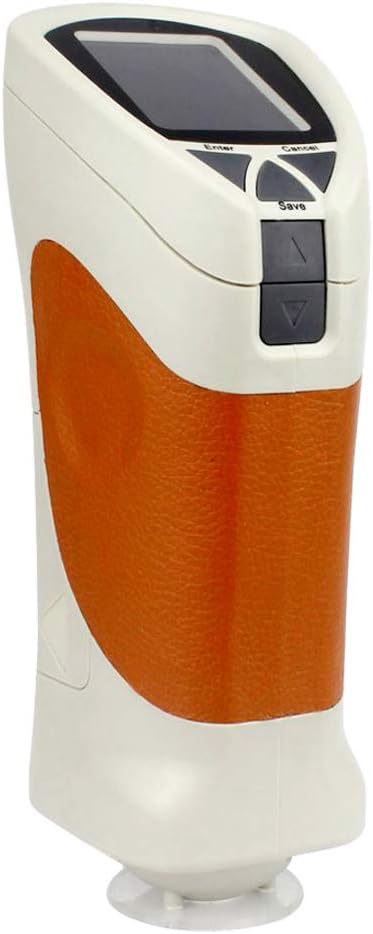

CS-220 Professional Precise Colorimeter Color Difference Meter Tester

1.Colorimeter IntroductionColorimeter is widely used in different industries for color difference test such as electroplating oxide, plastic cement, printing, paint, coffee, weaving and dyeing. It measures the sample color data L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.2.Colorimeter Advantages1).Device sensor exports Japan and information processing chip is from USA, which guarantee the optical signal transfer accuracy and electrical signal stability.2).Multiple color space display color values : L*a*b,L*c*h,Yxy.3).Can Test Degree of Whiteness and Yellow Degree4).Ergonomic Design5).Free Color Management Software6).Establish the Prototype Data L*a*b* by manually7).The device could store 100 standard sample groups and every sample group could store 100 sample data.8).Test different points on sample and get the average value. It is widely used for color control whose color is not uniform.3.Colorimeter Technical DataType CS-220Illumination system : 8/d(8°/diffused illumination)SCETesting Port Diameter : About 8mmMeasuring conditions : CIE 10° standard observer; CIE D65 light sourceMeasuring range : L*:1-100Repeatability : Standard deviation within delta E*ab*,below 0.08(testing condition: measure the white calibration board 80 times for average)Storage : 100 sets of standard samples; up to 100 under each standard sampleMeasuring time : About 0.5 secondsMeasuring light source : LEDLanguages : Chinese, EnglishPower : Four AA1.5V Alkaline battery or nickel-metal hydride batterys; Exclusive DC5V adapterport : USB2.0 printerweight : 550gSize : 77×86×210mm

• CS-220 Colorimeter measuring range : L*:1-100
• Testing Port Diameter :About 8mm
• Illumination system : 8/d(8°/diffused illumination)SCE
• Measuring conditions :CIE 10° standard observer; CIE D65 light source
• Repeatability : Standard deviation within delta E*ab*,below 0.08(testing condition: measure the white calibration board 80 times for average)
